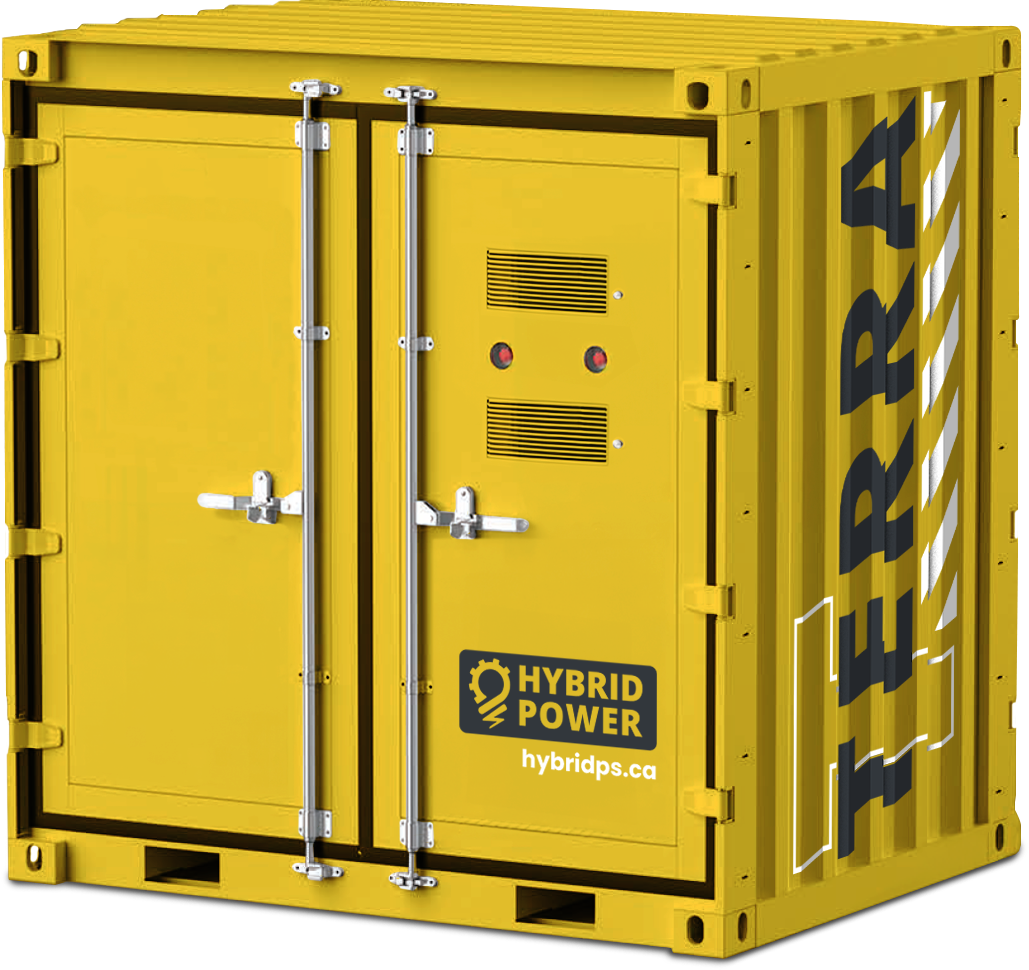

TERRA | 166kVA
Rated Power
166 kVA
Nominal Energy
180 kWh
Cycles
6,000+
Trusted by
What sets us apart
Built to outlast
Engineered for longevity and reliability in demanding environments.
Adaptable power solution
On-grid, off-grid, and hybrid capabilities in one system.
Canadian innovation
Designed and manufactured on Canadian soil, ensuring top-notch quality.
Big power, small footprint
Revolutionizing large-scale portable power
The Terra delivers comprehensive site power for diverse applications—from cranes and job trailers to forward operating bases.It can be seamlessly integrated with solar panels or paired with a fossil fuel-based generator to form a robust hybrid system.
Specifications
Rated Power
166 kVA
Max. Rated / Apparent Power
270 kVA
Rated Voltage
480 V* (±15%)
Rated Current
375 A
Grid Frequency
60hz
AC Connection
3 W + N
THDI
≤ 3%
Parallel Capable
Yes (up to 3)
EMS
SEMS3000 12 inch LCD Touch Panel
Ingress Rating
IP54 / NEMA 3R
Topology
Transformer
Working Temperature
-30°C to 55°C [-22°F to 131°F]
Storage Temperature
-40°C to 65°C [-40°F to 149°F]
Relative Humidity
5 ~ 95% (No condensing)
System Noise
<65 dB
Cooling
Intelligent temperature control
Fire Suppression System
Included
Altitude
5,000 (>3,000 derating)
Certifications
UL1973 / UL1741 / UL9540A / FCC Part 15 Class B / CUEN/ UN38.3
Dimensions
8’ W x 10’ L x 9.5’ H
Weight
10,361.72 lbs (4,700 kg)
The TERRA MicroGrid Advantage
Revolutionizing Underground Operations with Fuel-Free Power
Advantages of TERRA
All-In-One
Integrated Battery + SEMS + SPCS
Hybrid Mode
Uninterrupted Power Supply
AC-Coupling
Connect to Diesel Generators, Grid, and PV
Up to 4 Sets in Parallel
Scalable Power and Capacity to Support Demanding Load
Rapid Deployment
Support Lifting and Forklift Transportation
Excellent Adaptability
Stable Performance in Harsh Environments
30% Savings on Diesel Fuel Consumption
- The TERRA intelligently and efficiently manages the output power of the engine at 50% to 70% of the rated power of the DG, ensuring that the DG operates at the lowest fuel consumption rate and helping achieve fuel consumption reduction.
- The TERRA supports up to 250 kW continuous power output for 30 seconds to address the issues of high motor startup currents and load impacts, extending the lifespan of diesel generators, reducing failure rates, and decreasing maintenance frequency and costs.
Everything You Need to Know
Top Questions and Answers
How does the TERRA MicroGrid compare to traditional diesel generators?
The TERRA MicroGrid offers several advantages over diesel generators. It's emission-free, nearly silent, requires minimal maintenance, and can be used both indoors and outdoors without concerns about fumes or fuel storage. Plus, its ability to parallel up to four units provides scalability that most generators can't match.
Can the TERRA MicroGrid be used for off-grid applications?
Absolutely! The TERRA MicroGrid is designed to operate in on-grid, off-grid, and hybrid modes. Its high capacity and ability to integrate with solar make it ideal for remote locations or areas with unreliable grid power.
What kind of maintenance does the TERRA MicroGrid require?
One of the best features of the TERRA MicroGrid is its minimal maintenance requirements. This significantly reduces downtime and operational costs.
How long can the TERRA MicroGrid provide power on a single charge?
The duration depends on the power draw of your equipment. With its 153.6 kWh capacity, it can power significant loads for extended periods. For example, it could run a 50 kW load for about 3 hours. For more specific estimates based on your equipment, please contact our support team.
Is the TERRA MicroGrid compatible with renewable energy sources?
Yes, the TERRA MicroGrid is designed to integrate seamlessly with renewable energy sources, particularly solar power. It can manage and store energy from solar panels, making it an excellent choice for hybrid power systems.
What safety features does the TERRA MicroGrid have?
Safety is a top priority in the design of the TERRA MicroGrid. It includes advanced battery management systems, thermal regulation, and is certified to UL1741 and UL9540A standards. It also features a built-in fire suppression system for additional peace of mind.
